Product Overview
| Key specifications | |
|---|---|

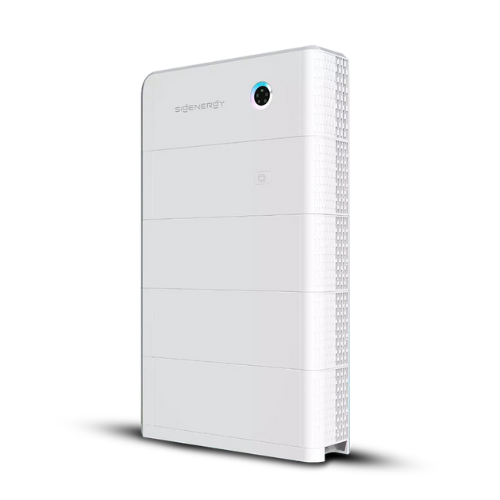

| Model Number | SigenStor BAT 8.0 |
| Width (mm) | 767 |
| Height (mm) | 270 |
| Length (mm) | 260 |
| Weight (kg) | 70 |
| Product Specifications | |
|---|---|
| Usable Energy | 8 kWh |
| Max Output Current | - |
| Peak Output Current/Power | - |
| Nominal Voltage | 600 V |
| Operating Voltage | 180-270 V |
| Operating Temperature | -20 to +55 C |
| Battery Cell Technology | Lithium Iron Phosphate (LiFePO4) |
| Communication | RS485 | Ethernet |
| Enclosure Protection Rating | IP66 |
| Round-trip Efficiency | 98% |
| Scalability | - |
| Applications | ON Grid |
| Warranty | |
|---|---|
| Warranty | 10 |
