Fast read
Choosing between Tesla's Powerwall options can feel confusing, especially with the newer Powerwall 3 now available in Australia (since August 2024). The most significant upgrade in the Powerwall 3 is its built-in hybrid solar inverter. This means that for new solar installations, you likely won't need a separate solar inverter, which simplifies the system.
A key practical difference remains: Powerwall 3 is primarily designed for new solar and battery installs, while the
AC-coupled Powerwall 2 is often easier to retrofit onto existing solar systems.

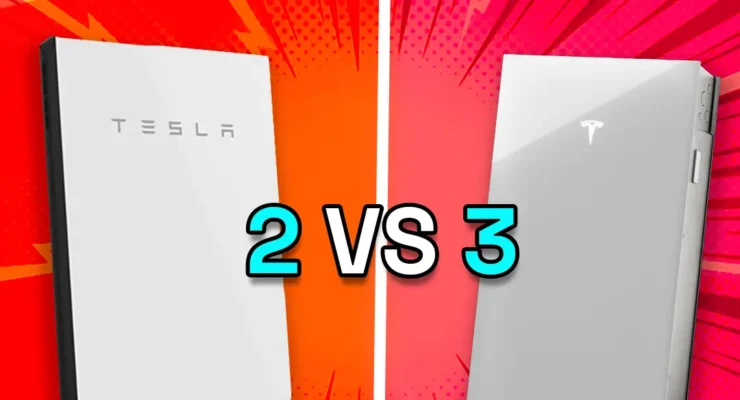

Tesla Powerwall 2 vs Powerwall 3: What’s the difference?
It’s a question many Australian homeowners considering battery storage are asking: Should I go for the established Tesla Powerwall 2 or the newer Tesla Powerwall 3? With the Powerwall 3 now rolling out across the country, understanding the key differences is vital for making an informed decision that suits your home, energy needs, and budget.
Both are high-quality battery systems, but they have distinct features and are often suited to different situations. Let’s break down the key distinctions to help you understand which might be the better fit for your solar journey.
The biggest change: Integrated solar inverter
This is perhaps the most fundamental difference and affects how the battery integrates with your solar panels.
- Tesla Powerwall 3: Comes with a built-in hybrid solar inverter. This clever piece of technology manages both the energy coming from your solar panels (converting DC to AC for your home) and the charging/ discharging of the battery itself. For a completely new solar panel and battery installation, this integrated approach can mean one less box on the wall, potentially simplifying the setup and even reducing the overall system cost. It’s designed to handle a significant amount of solar input (up to 20kW of panels connected to its 11.04kW inverter).
- Tesla Powerwall 2: This unit is an ‘AC-coupled’ battery. It doesn’t have its own solar inverter built in. Instead, it connects to the AC wiring of your house and works alongside a separate, traditional solar inverter that manages your panels.
What this means for you:
If you’re starting from scratch with both solar panels and a battery, the Powerwall 3 offers a streamlined, all-in-one solution. However, if you already have a functioning solar PV system with its own inverter, the Powerwall 2 is often much simpler and more cost-effective to add (retrofit) to your existing setup. While Tesla says the Powerwall 3 can be added to existing solar, it’s generally a more complex installation in that scenario compared to the Powerwall 2’s straightforward AC connection.
More power on tap: Continuous power output
How much power can the battery deliver at any one time? This is where the Powerwall 3 takes a significant leap forward.
- Powerwall 3: Can deliver up to 11.04 kilowatts (kW) of continuous power. It’s worth noting that in many areas of Australia, your local network operator (DNSP) might require this output to be limited to 10kW, which is still very substantial.
- Powerwall 2: Provides 5kW of continuous power, with the ability to deliver a peak of 7kW for short durations.
What this means for you:
The Powerwall 3’s higher power output (effectively double that of the Powerwall 2, even if capped at 10kW) is a major advantage. It means the battery can run more high-demand appliances simultaneously – think air conditioners, electric ovens, pool pumps, or even charging an electric vehicle (many home EV chargers draw 7kW or more). During a blackout, this extra power provides greater flexibility and resilience, potentially keeping more of your essential circuits running.
Battery chemistry matters: LFP vs NMC
The type of lithium-ion cells inside the battery has changed, impacting safety, longevity, and sustainability.
- Powerwall 3: Uses Lithium Iron Phosphate (LFP) battery chemistry. LFP is widely recognised in the industry as being inherently safer (more stable and far less prone to overheating or fire risk) and offering a longer lifespan (tolerating more charge and discharge cycles) compared to older chemistries. It also avoids the use of cobalt, addressing ethical sourcing concerns.
- Powerwall 2: Uses Nickel Manganese Cobalt (NMC) chemistry. While effective, NMC cells generally have a slightly lower thermal stability point and typically offer fewer charge cycles over their lifetime compared to LFP.
What this means for you:
The shift to LFP in the Powerwall 3 aligns with the latest safety and longevity standards for home batteries. You’re getting technology that’s generally considered safer, expected to last longer, and comes with a better environmental and ethical profile due to being cobalt-free.
Energy capacity: Stays the same
Despite the technical upgrades, the amount of energy each battery can store hasn’t changed.
- Powerwall 3: Offers 13.5 kilowatt-hours (kWh) of usable energy storage.
- Powerwall 2: Also offers 13.5 kWh of usable energy storage.
What this means for you:
A single unit of either Powerwall will store the same amount of electricity. If you need more storage, you’ll need multiple units regardless of which version you choose. The difference lies in the power output (how fast you can use the energy) and the underlying technology, not the total storage volume per unit.
Design and installation considerations
There are a few other practical differences to be aware of:
- Size & Weight: The Powerwall 3 is a bit heavier (around 130kg vs 114kg for PW2) and has slightly different dimensions (shorter, but deeper).
- Scalability: You can connect up to four Powerwall 3 units together for more capacity (54 kWh total). Tesla also plans future ‘Energy Expansions’ (battery-only units without the inverter) to add more storage. Powerwall 2 could technically scale higher, but mixing PW2
and PW3 units in the same system is not possible. - Durability: Powerwall 3 features improved environmental protection, including flood resistance up to a certain depth (rated IP67).
What this means for you:
Installation space and logistics might differ slightly. If you already own a Powerwall 2 and are thinking of expanding, you’ll need to add another Powerwall 2 (while available), not a Powerwall 3.
Is it right for your situation? New vs. existing systems
This is often the most crucial deciding factor for homeowners:
- Best for New Systems: If you’re getting a completely new solar panel and battery system installed together, the Powerwall 3 is generally the more advanced, powerful, and potentially more streamlined option due to its integrated inverter.
- Often Better for Existing Systems: If you already have solar panels with a working inverter and simply want to add battery storage, the Powerwall 2 (while stock remains) is often the easier and potentially cheaper solution to retrofit, thanks to its AC-coupled design.
What about cost and availability in Australia?
- Cost: The Powerwall 3 unit itself typically has a slightly higher purchase price than the Powerwall 2. However, when considering the total installed cost for a new system, the Powerwall 3 might work out similarly or even slightly cheaper because you save on buying a separate solar inverter. For retrofits, the Powerwall 2 might still be more economical overall. Always get tailored quotes.
- Availability: Powerwall 3 launched in Australia in August 2024 and is available through Tesla-certified installers. As production ramps up for the PW3, availability of the Powerwall 2 is expected to decrease throughout 2025.
Conclusion: Making the right choice
The Tesla Powerwall 3 is undoubtedly a significant upgrade, offering double the power output, an integrated hybrid inverter ideal for new installations, and the benefits of safer, longer-lasting LFP battery chemistry. The storage capacity (13.5 kWh) remains the same as the Powerwall 2. Your decision should hinge on your specific situation:
- Go for Powerwall 3 if you’re installing a brand-new solar and battery system, value the higher power output for running demanding appliances or EV charging, and want the latest LFP technology.
- Consider Powerwall 2 (if available) if you’re retrofitting a battery onto an existing solar system. As its AC-coupled nature often simplifies installation and may be more cost-effective in this scenario.
Armed with this knowledge, your next step should be to talk to qualified, CEC-accredited installers. They can assess your home’s energy usage, examine your existing setup (if any), discuss your goals, and provide detailed quotes comparing suitable options.
